Spatter Protection
Weld spatter and similar debris are extremely hot and tend to stick to components. Foreign materials attached to the track rail cannot be completely eliminated through standard dust protection measures. Therefore, it is essential to implement strategies to prevent adherence and adopt advanced removal techniques for foreign substances.
Stainless Steel End Plates
The standard synthetic resin end plates are replaced with stainless steel end plates. The total length of the slide unit remains unchanged.
Fluorine Black Chrome Surface Treatment
Rail cover sheet that consists of steel plate and adhesive tape and fastened to the dedicated track rail with groove on the track rail prevents foreign substances from entering into the slide unit.
​
Caps for rail mounting holes close the track rail mounting holes to prevent foreign substances from entering into the slide unit. Contact IKO for aluminum alloy caps for rail mounting holes.
​

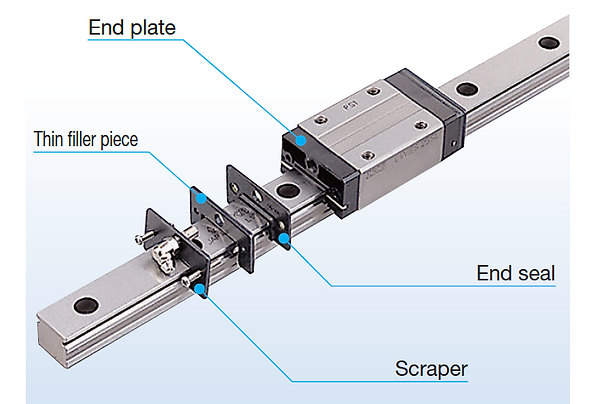

Scrapers: Mounted to the outside of end seal, it may remove large foreign substances adhering to the track rail.
​
Special Bellows for heat resistance is available. Please contact IKO.
​
